Level Meter

This slideshow requires JavaScript.

Level meter adalah jenis meter yang digunakan untuk mengecek dan mengukur suatu ketinggian dari fluida baik berupa liquid maupun solid. Selain bisa mengukur ketingian level meter juga bisa di gunakana untuk mendeteksi atau mengetahui kedalaman sumur, kedalaman danau, kedalaman laut dan lainnya dengan menggunakan sensor. Namun di dunia industri level meter banyak di gunakan untuk mengetahui ketinggian cairan atau solid berupa tepung atau biji-bijian yang berada dalam tanki ataupun silo. Level meter yang menggunakan sensor pada aplikasi dilapangan selain di gunakan untuk mengetahui suatu ketinggian juga berfungsi sebagai control.

Sebagai control fungsi level sensor biasanya di gunakan untuk menghentikan suatu aliran atau proses ketikan ketinggian dari liquid atau solid sudah berada pada ketinggian yang disyaratkan baik pada ketinggian terendah maupun pada ketinggian teratas yang sering disebut dengan level switch.

Level meter sebenarnya terdiri dari sensor untuk mendeteksi level yang di hubungkan dengan level transmitter atau display mempunyai fungsi untuk memonitor ketinggian yang bisa di teruskan untuk mengetahui volume serta biasanya mempunyai out put relay, analog 4-20mA, atau bisa juga comunication RS485 atau yang lainnya. Begitu juga material yang digunakan serta cara kerjanya yang berbeda sesuai dengan jenis atau type level sensor yang digunakan.

Type dan jenis level Meter

Ultrasonic Level Sensor

Ultrasonic waves detect an object in the same way as Radar does it. Ultrasonic uses the sound waves, and Radar uses radio waves. When ultrasonic pulse signal is targeted towards an object, it is reflected by the object and echo returns to the sender.

JRS Float Level Switch

Features

  • Parker float Level Switch.pngDetection balls and detection rods are completely enclosed and thus the products are not affected by pressure, vacuum, or gases
  • The lead switch is enclosed in a glass tube containing inert gas and thus the products operate safely in combustible gases
  • When the detection ball moves up and down due to buoyancy, the lead switches fixed to the upper/lower limit contact point positions are sensed.
  • Can be used for simultaneous control of water supply/drainage or alarms for water shortage/full water by additionally installing electrode type level switches (21F-G)
  • In particular, types with the control unit not built in the products can be used in regions with the risk of explosion or cases where the location of detection is far away from the location of control by installing the power supply part and the amplification part separately
  • Depending on connections, either N.C or N.O can be used or both can be used.

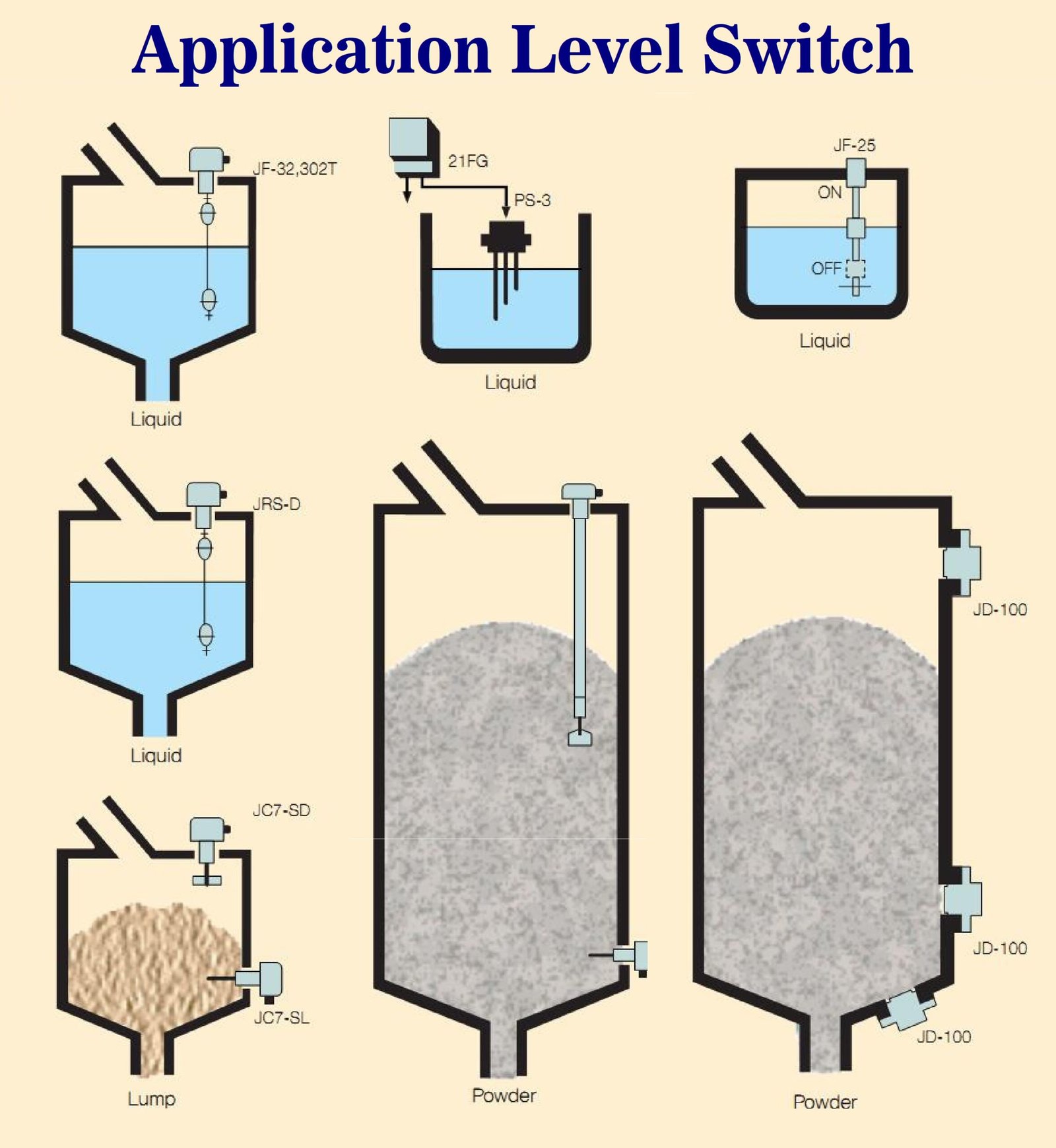

Rotary Paddle Level Switch

A level switch is a device used to detect the level of substances such as liquid, chemical solvent, powders, lumps within tanks, silos, and hoppers. In addition, a level switch prevents overfilling of tanks and silos and ensures tanks do not run too low, possibly interrupting production.
